Removing And Installing Engine Compartment Lid Rep-Rep-RAF1541-4161000 - V.5 (X6 M)
IMPORTANT:
Danger of injury!
Use suitable tool to support bonnet in the fully opened position.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Use suitable tool to support bonnet in the fully opened position.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
IMPORTANT:
These instructions apply only to vehicles without active pedestrian protection
.
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to texts on KSD CD (FRU number 41 61 000).

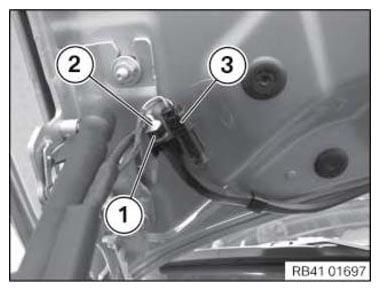

Release the lock (1) and detach the water hose (2).
Unfasten plug connection (3) and disconnect.
Unscrew nuts (1).
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust ENGINE COMPARTMENT LID .
