Removing and installing/replacing the ornamental grille in bumper panel (X6 M)

Necessary preliminary work:

• Remove the TRIM FOR THE BUMPER PANEL  at the bottom rear

Removal:

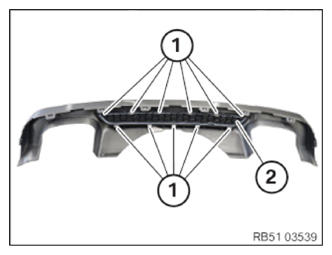

Release latch mechanisms (1) and remove center ornamental grille (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage the middle ornamental grille (2) in the latch mechanisms (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the TRIM FOR THE BUMPER PANEL  at the bottom rear
