Removing and installing/replacing cover for rear bottom center bumper panel (X6 M)

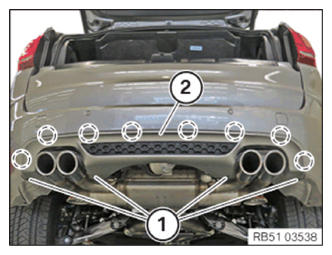

Removal:

Release screws (1).

Unclip trim (2) from latch mechanisms to rear.

G15052379Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip trim (2) into latch mechanisms.

Tighten down screws (1).

NOTE: Latch mechanisms on cover (2) must not be damaged or missing.
G15052380Courtesy of BMW OF NORTH AMERICA, INC.
