32 33 000 Removing and installing/replacing sport steering wheel
IMPORTANT:
Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.
NOTE:
Chassis/wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks:
- Remove AIRBAG UNIT
Move wheels/steering wheel into straight-ahead driving position.

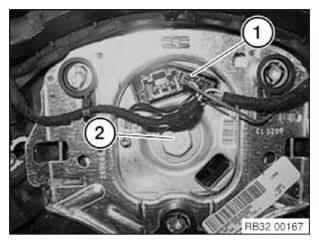

Disconnect plug connection (1).
Release screw (2) and remove steering wheel.
Installation note:
Make sure connecting line(s) is/are correctly laid.
Tightening torque 32 33 1AZ .
NOTE:
There are clock springs installed with and without a mechanical anti-twist lock.
Clock spring without mechanical anti-twist lock:
(recognizable at the inspection glass for the mark of the neutral position)
Clock spring without mechanical anti-twist lock:
(recognizable at the inspection glass for the mark of the neutral position)
- Do not twist the clock spring.
- Check zero position of clock spring on steering column switch cluster.
- Neutral position is correct only when the green or yellow mark (1) is clearly visible!
Installation note:
Vehicles with steering wheel heating: Before fitting steering wheel on steering column, ensure correct cable routing.
Align steering wheel by way of marking (1) to steering column marking (2) and attach.
Replacement:
- Swap over MULTIFUNCTION STEERING WHEEL SWITCH
- If necessary, swap over STEERING WHEEL MODULE
- Remove SHIFT PADDLES FOR AUTOMATIC TRANSMISSION
