32 34 030 Removing and installing/replacing airbag unit (sport steering wheel)

WARNING: Observe the following instructions to avoid any risk of injury by the airbag unit.

Comply with safety regulations for handling components with gas generators.
Do not exert any force on the airbag unit.
Use only specified tools for releasing the airbag unit.

NOTE: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.

IMPORTANT:

Steering wheel must be replaced if airbag unit has been triggered! See REMOVING STEERING WHEEL or REMOVING SPORT STEERING WHEEL .

Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Insert Torx screwdriver T30 (1) at an angle into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).

Increase pressure on spring leg using Torx screwdriver T30 (1) until airbag unit is released.

Repeat procedure on other side.

Installation note:

Make sure electrical leads are correctly positioned.

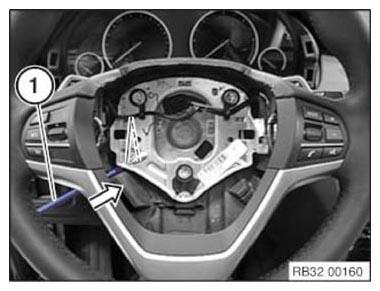

Fig 1: Increasing Pressure On Spring Leg Using Torx Screwdriver T30

Courtesy of BMW OF NORTH AMERICA, INC.

Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.

WARNING: Danger of injury!
The airbag unit may only be set down with the airbag itself facing up .

Tilt airbag unit towards rear.

Disconnect electrical connectors (1) and remove airbag unit.

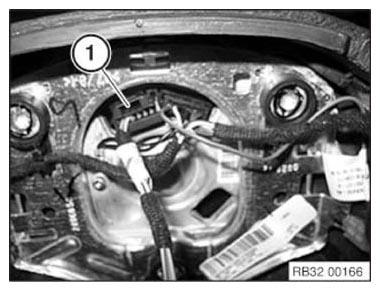

Fig 2: Identifying Airbag Unit Electrical Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
