61 62 060 Removing and installing/replacing rear wiper motor

Necessary preliminary tasks:

• Remove REAR WINDOW WIPER ARM
• Remove TAILGATE TRIM PANEL

Unlock and disconnect the connector (1).

Unfasten screws (2).

Tightening torque 61 62 1AZ .

Remove rear wiper motor (3).

Installation note:

Check wiper pivot grommet for signs of damage.

If necessary, replace grommet.

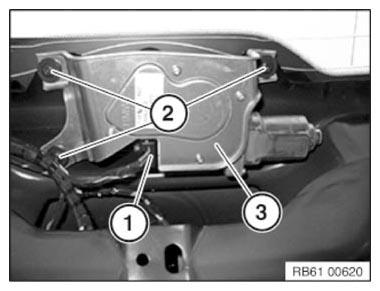

Fig 1: Identifying Rear Wiper Motor, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
