13 71 155 Remove the top clean air pipe (N20 hybrid drive)
WARNING:
High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:
Compliance with the following points is mandatory before beginning work:
- Observe SAFETY INFORMATION for handling electric vehicles.
Necessary preliminary tasks:
- Remove INTAKE SILENCER HOUSING .
Removal:

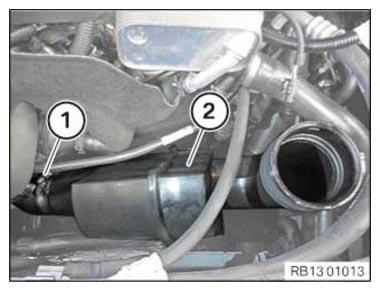

Release clamps (1).
Remove top clean air pipe (2).
Installation:
Install top clean air pipe (2).
Tighten clamps (1).
Tightening torque 13 71 4AZ .
Required follow-up work:
- Install INTAKE SILENCER HOUSING .
