13 71... Remove the intake port (N63 B40/B44 O 1)

Pull off intake port (2) upwards out of rubber mounts (1).

Feed out intake port (2) towards the rear out of guides and remove.

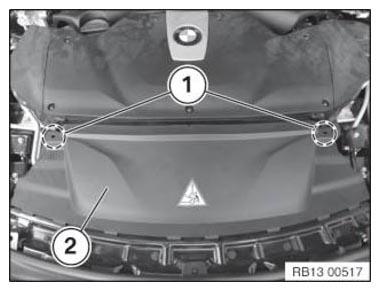

Fig 1: Identifying Intake Port And Rubber Mounts
G11104231Courtesy of BMW OF NORTH AMERICA, INC.
