17 11 035 Removing and installing/replacing fan cowl with electric fan (N57)

When the engine is stopped after the end of the journey, operation of the electric fan may be necessary. In rare cases, operation of the electric fan can last up to 11 min. This is for component protection. In this context, renewing the electric fan will not remedy the problem!

Necessary preliminary work:

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove INTAKE PORT .
Remove UNDERBODY PROTECTION

Unclip Bowden cable for engine compartment lid release from transverse reinforcement.

Loosen screws (1). Renew screws.

Tightening torque 17 10 4AZ .

Remove transverse reinforcement (2).

Fig 1: Identifying Transverse Reinforcement And Screws

G11104174

Courtesy of BMW OF NORTH AMERICA, INC.

Release the refrigerant line (1) from the fan cowl.

Fig 2: Identifying Air Conditioning Lines

G11104737

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and pull off.

Fig 3: Identifying Connector

G11104738

Courtesy of BMW OF NORTH AMERICA, INC.

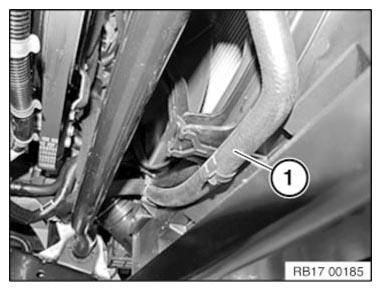

Release coolant hose (1) from the fan cowl at the bottom.

Fig 4: Identifying Coolant Hose

G11104746

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Raise fan cowl (2) until holder (3) can be folded into center of vehicle.

NOTE: For a better general overview, graphic and description are without coolant hose.

Do not raise fan cowl by fan wheel.

Fig 5: Raising Fan Cowl

G04794054

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1).

Feed out fan cowl (2) towards top and remove.

Fig 6: Removing Fan Cowl

G04794055

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

Fig 7: Identifying Retaining Tabs

G04794056

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check saved fault code entry.

Reassemble the vehicle.

Delete the fault memory.
