17 51 000 Removing and installing/replacing charge air cooler (N20 PHEV)

WARNING: High-voltage system - risk of serious injury or death. Observe SAFETY INFORMATION for working with electric vehicles.

IMPORTANT: Coat sealing rings of snap fasteners with lubricant.
Pressure pipes cannot be fitted without lubricant.

Necessary preliminary tasks:

Remove front UNDERBODY PROTECTION .
Remove FAN COWL WITH ELECTRIC FAN .

Removal:

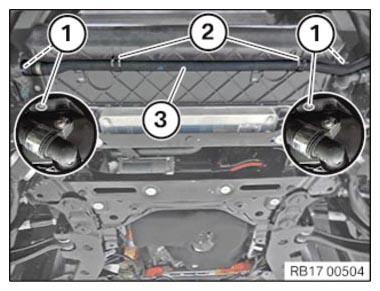

Release screws (1) on the coolant hose on left and right.

Feed out coolant hose (3) on holder (2) and lay to one side.

Fig 1: Identifying Charge Air Cooler Coolant Hose, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

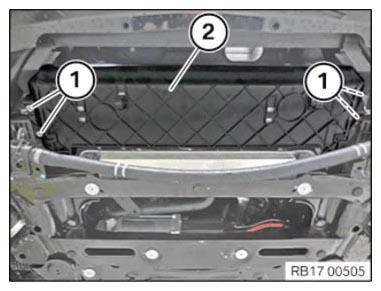

Release left and right screws (1).

Feed out lower section of module carrier (2) and remove.

Fig 2: Identifying Charge Air Cooler Module Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

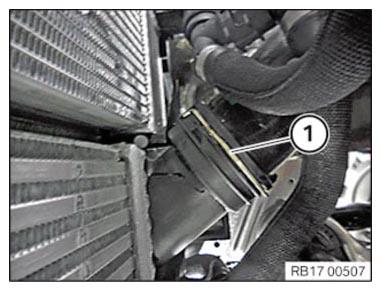

Unlock right charge air line (1) on charge air cooler and release.

Fig 3: Identifying Right Charge Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

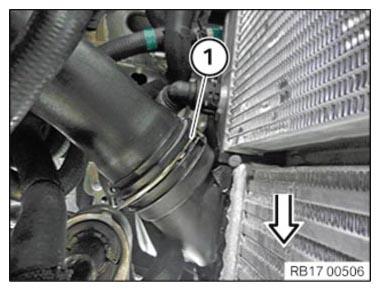

Unlock left charge air line (1) on charge air cooler and release.

Thread out charge air cooler (2) downwards in direction of arrow and remove.

Fig 4: Removing Charge Air Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Installation note:

Pressure pipes cannot be fitted without lubricant.

Coat sealing rings of charge air hoses with lubricant.

Charge air hoses must audibly snap into place.

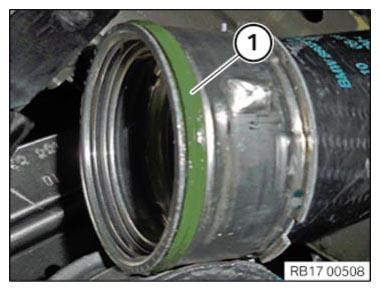

Check sealing rings (1).

Replace damaged sealing rings (1).

Parts: Sealing rings

Fig 5: Identifying Charge Air Cooler Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

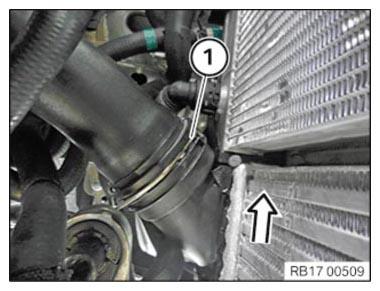

Feed in charge air cooler in direction of the arrow and install.

Connect left charge air line (1) to charge air cooler and lock.

Lock must snap audibly into place.

Fig 6: Connecting Left Charge Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

Connect front right charge air line (1) to charge air cooler and lock.

Lock must snap audibly into place.

Fig 7: Identifying Right Charge Air Line

Courtesy of BMW OF NORTH AMERICA, INC.

Thread in lower section of module carrier (2) and install.

Tighten down screws (1).

Tightening torque 17 10 2AZ .

Fig 8: Identifying Charge Air Cooler Module Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install coolant hose (3) on the holder (2).

Tighten left and right screw (1) on coolant hose.

Tightening torque 17 10 2AZ .

Fig 9: Identifying Charge Air Cooler Coolant Hose, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
