11 41 010 Removing and installing/replacing chain module for oil pump (PHEV)

Special tools required:

2 219 548 .
83 30 2 212 831
2 212 825 .
11 4 120 .
2 318 117 .
11 9 260 .
2 212 831 .
00 9 140 .

WARNING: High-voltage system - danger to life

Observe the SAFETY INFORMATION for working with electric vehicles.

Fig 1: Attaching Special Tool (2 318 117) To Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The counterbalance shaft must be adjusted to the motor.

Necessary preliminary tasks:

Remove TRANSMISSION .
Remove CYLINDER HEAD COVER .
Remove all SPARK PLUGS .
Remove OIL SUMP .
Remove TOOTHED BELT for the starter motor.
Remove VIBRATION DAMPER .
Secure CAMSHAFTS with special tool.
Remove CHAIN TENSIONER PISTON .

Installation note:

Wet special tool 2 219 548 with oil for simpler removal and installation.

Secure crankshaft with special tool 2 219 548 above the dowel hole.

Secure camshafts with special tool 83 30 2 212 831 (see procedure in CHECKING TIMING ).

Fig 2: Identifying Special Tool (2 219 548)

Courtesy of BMW OF NORTH AMERICA, INC.

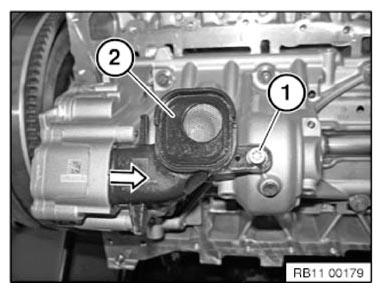

Release screw (1).

Detach intake snorkel (2) in direction of arrow.

Fig 3: Detaching Intake Snorkel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing cap using a screwdriver.

Fig 4: Loosening Sealing Cap Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Only open central bolt of oil pump with special tool.

Secure special tool 2 212 825 to oil pump with screw (1).

The counterbalance shaft is now secured.

Fig 5: Securing Special Tool (2 212 825) On Oil Pump Housing With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Push back chain tensioner with tensioning rail (1) and secure with special tool 11 4 120 .

NOTE: Sprocket must be blocked with special tool 2 318 117 in order to release central bolt (2).

Fig 6: Attaching Special Tool (2 318 117) To Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 2 318 117 and secure with screws (3).

Release central bolt (2) for oil pump drive shaft.

Remove special tool 2 318 117 .

Installation note:

Replace central bolt (2).

Tightening torque 11 41 5AZ .

NOTE: Engine removed.

Block crankshaft with special tool 11 9 260 .

Fig 7: Securing Flywheel With Special Tool (11 9 260)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not remove special tools 2 219 548 and 2 212 831 to release central bolt (1).

Fig 8: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolt (1).

Breakaway torque greater than 500 Nm .

Installation note:

Release central bolt (1) with 3/4 inch tool (2).

Screw in two screws (1) and pull off hub (2) in direction of arrow.

Fig 9: Pulling Crankshaft Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and pull off chain module (2) off of oil pump drive shaft.

Tightening torque 11 41 3AZ .

Fig 10: Identifying Chain Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

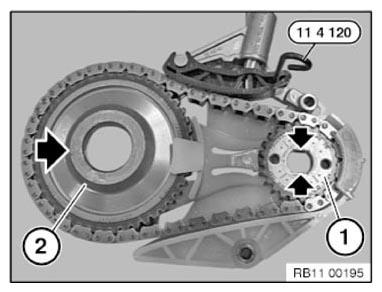

Installation note:

Observe mounting flats on camshaft sprocket (1).

Both grip discs (2) must be attached to drive gear for oil pump with welding spots.

Fig 11: Identifying Grip Disc, Mounting Flats On Camshaft Sprocket, And Special Tool (11 4 120)

Courtesy of BMW OF NORTH AMERICA, INC.

Grip discs are not individually available.

If grip discs are damaged, the drive gear for oil pump with grip discs must be replaced.

Before installation: Press back chain tensioner with tensioning rail and secure with special tool 11 4 120 .

Position module (1) for oil pump drive.

Position module (2) for camshaft drive.

Insert hub (3) for vibration absorber with grip disc.

Fig 12: Inserting Vibration Absorber Hub With Grip Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Position chain module (2) for oil pump drive shaft on mounting flats.

Insert bolts (1).

Tightening torque: 11 41 3AZ .

Fig 13: Identifying Chain Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Camshaft sprocket must be blocked with special tool 2 318 117 in order to tighten central bolt (2).

Mount special tool 2 318 117 and secure with screws (3).

Insert and tighten central bolt (2) for oil pump drive shaft.

Installation note:

Replace screw.

Tightening torque 11 41 5AZ .

Fig 14: Attaching Special Tool (2 318 117) To Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Disassemble special tools 11 4 120 and 2 318 117 .

Insert central bolt.

Secure central bolt with special

tool 00 9 140 .

Tightening torque 11 21 1AZ . Position magnetic foot (1) in suitable location.

Installation note:

Replace front CRANKSHAFT SEAL .

Fig 15: Tightening Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
