51 16 041 Removing and installing/replacing exterior mirror cover cap (on left or right)

Necessary preliminary tasks:

NOTE: Protective cap is secured without play to the retaining ring by means of multitooth catches (1).

Secure protective cap on exterior mirror against falling off.

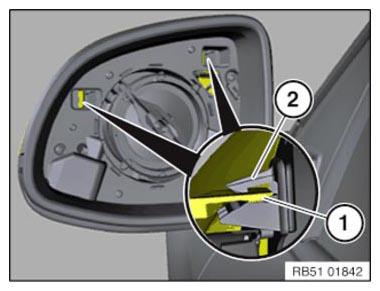

Fig 1: Identifying Multitooth Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Raise catches (2) slightly and detach protective cap towards front from multitooth catch (1).

Installation note:

Catches and guides must not be missing or damaged.

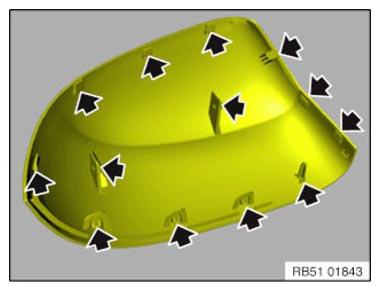

Fig 2: Locating Catches

Courtesy of BMW OF NORTH AMERICA, INC.
