51 24 133 Removing and installing/replacing Automatic Soft Close drive on tailgate (Automatic Soft Closing)

Necessary preliminary tasks:

• Remove TRIM FOR REAR LID LOWER SECTION

Unfasten plug connection (1) and disconnect.

Disconnect Bowden cable (2).

Installation note:

Make sure the Bowden cable (2) is fitted correctly.

Fig 1: Identifying Plug Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber grommets (1) of tailgate (push towards bottom).

Carefully remove motor (2) with cable (3) and Bowden cable (4).

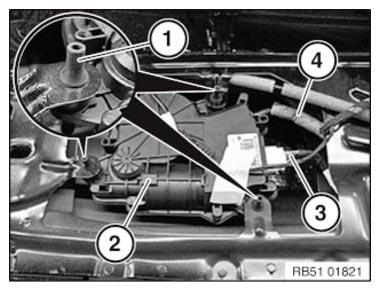

Fig 2: Identifying Motor, Rubber Grommets, Cable, And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
