51 24 010 Adjusting tailgate catch for tailgate upper section

Prerequisite:

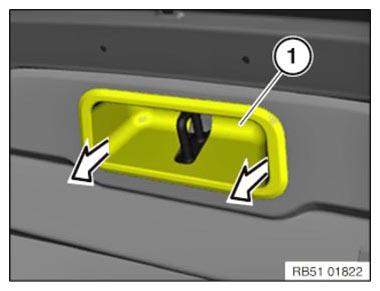

Unclip cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

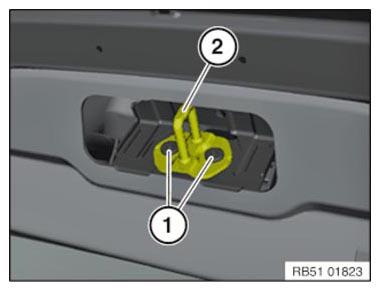

Slacken screws (1) until striker (2) can still just be moved and centers itself.

Close rear lid.

Adjust tailgate to NOMINAL DIMENSIONS .

Tighten down screws (1).

Tightening torque 51 24 4AZ .

Check adjustment, repeat procedure if necessary.

NOTE: When the tailgate is closed, the striker (2) must not jar or rub in the tailgate lock. Look out for scratch marks.

Fig 2: Identifying Striker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with reversing camera:

After adjusting, check reversing camera and if necessary RECALIBRATE .
