51 16 227 Removing and installing/replacing trim on center console at side left or right
Necessary preliminary tasks:
- Remove FRONT AND REAR SIDE CARPETS .
- Remove the REAR FRESH AIR GRILLE .

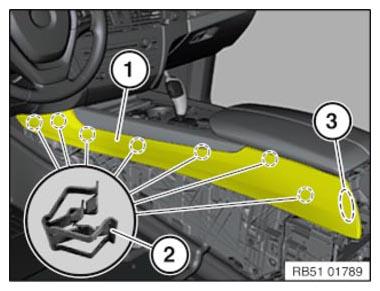

Pull trim (1) off clips (2) starting at front.
Feed out cover (1) in area (3) towards rear.
Installation note:
Replace faulty clips (2).
Feed in cover (1) first in area (3), then press down in direction of center console.
