64 22 191 Removing and installing/replacing rear cabin fresh-air grille

Special tools required:

Necessary preliminary tasks:

Open storage box (1).

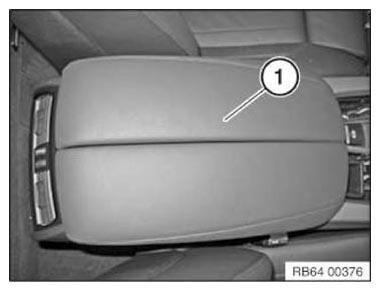

Fig 1: Identifying Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage trim (1) using special tool 00 9 327 .

Fig 2: Disengaging Trim Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) on cover (2) must not be damaged.

Fig 3: Identifying Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

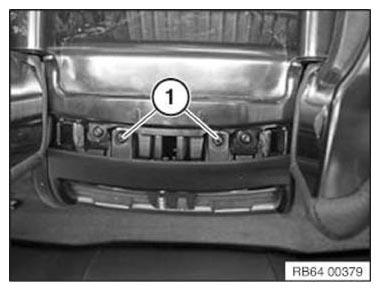

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove fresh air grille (2).

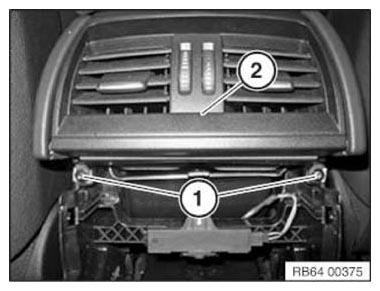

Fig 5: Identifying Fresh Air Grille And Screws
