51 32 390 Removing and installing/replacing frame trim on window frame of left or right front door
Necessary preliminary tasks:
- Open front side window glass.
- Remove EXTERIOR MIRROR on front door.

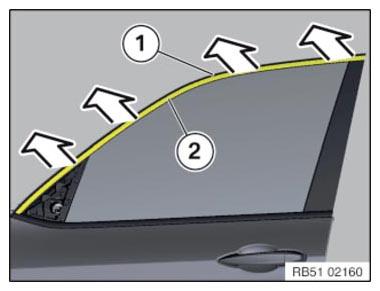

Release gasket (1) in area above frame trim.
Lever out frame trim (2) in direction of arrow and remove.
Installation note:
Coat gasket (1) with water.
Make sure frame trim (2) is correctly fitted in gasket (1).
