51 11 770 Removing and installing/replacing front left or right deformation element for bumper

NOTE: Work is described for left deformation element.

Necessary preliminary tasks:

Remove left HEADLIGHT
Remove INTAKE DUCT
Remove IMPACT ABSORBER

AFGS (ACTIVE PEDESTRIAN PROTECTION) PROCEDURE AFTER ACCIDENT

Unscrew bolt (1) on right headlight.

Tightening torque 63 12 1AZ .

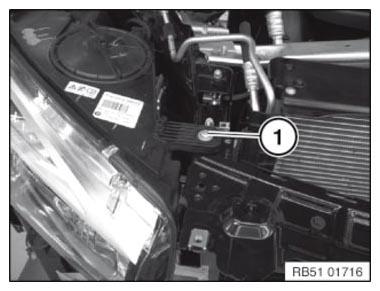

Fig 1: Identifying Bolt On Right Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cover (1) on left and right.

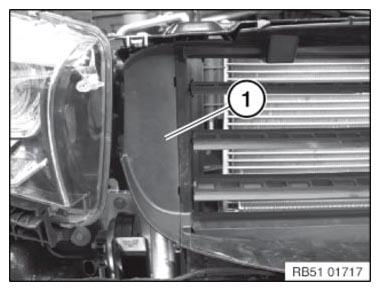

Fig 2: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 11 11AZ .

Unscrew bolt (2) and remove support (3).

Tightening torque 51 11 12AZ .

NOTE: Carry out work on the left side in the same way as for the right side illustrated here.

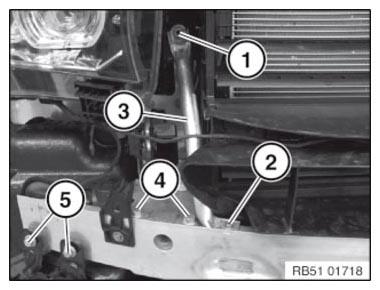

Fig 3: Identifying Support And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Right side only:

Release screws (4).

Diesel versions only:

Release screws (5).

Release screws (1).

NOTE: Carry out work on the left side in the same way as for the right side illustrated here.

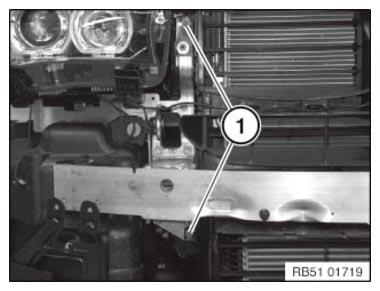

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Unlock plug connections (1) and disconnect.

Unclip wiring loom from support member if necessary.

Unfasten screws (2).

Tightening torque 51 11 5AZ .

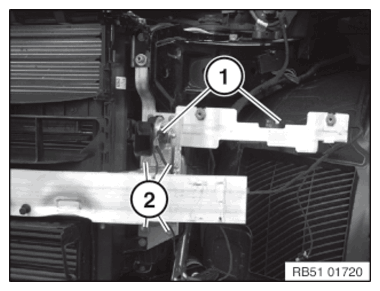

Fig 5: Identifying Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unfasten any other cable retainers as necessary.

Maneuver out front panel complete with air duct (2), support member (3) and deformation element (4).

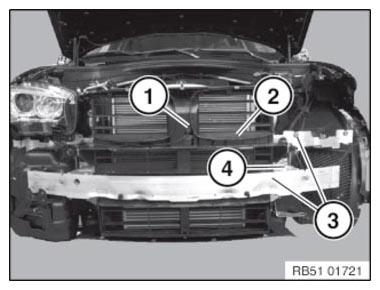

Fig 6: Identifying Air Duct, Support Member, Deformation Element And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Undo screws (1) from rear.

Remove air duct (2).

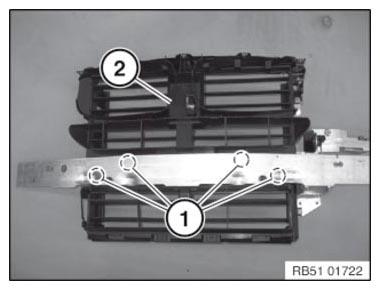

Fig 7: Identifying Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1) and remove support member from deformation element.

Tightening torque 51 11 4AZ .

Unscrew nut (2) and remove twin-tone horn and bracket.

Unscrew bolts (3) and remove bracket from deformation element.

Tightening torque 51 11 6AZ .

Remove fixings (4).

Unscrew bolts (5) and remove sensor from bracket.

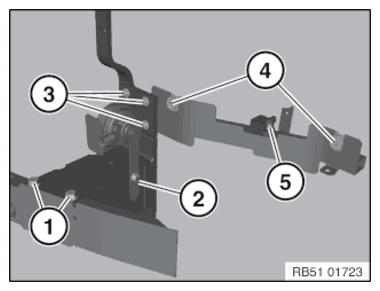

Fig 8: Identifying Support Member And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
