66 53 020 Removing and installing (replacing) reversing camera
Attention!
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) !
Necessary preliminary tasks:

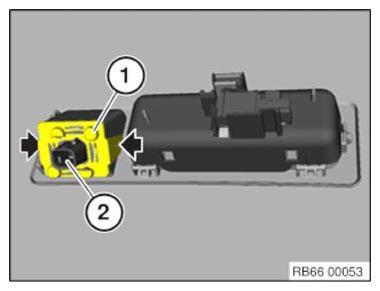

Unlock latches at marked points.
Remove cover (1).
Remove reversing camera (2).
Required follow-up work:
Replacement:
Carry out PROGRAMMING/ENCODING .
In addition, for equipment specification with all-round vision camera:
Carry out the service function:
- Driver assistance
- All-round vision camera
- All-round vision camera programming
