61 31 118 Removing and installing/replacing power window switch (front passenger side)

Necessary preliminary tasks:

Release catches (1) on both sides.

Remove switch for power window regulator (2) in direction of arrow.

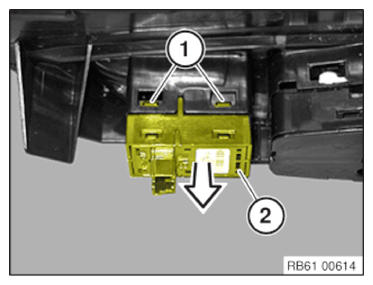

Fig 1: Identifying Switch And Catches
G09949594Courtesy of BMW OF NORTH AMERICA, INC.
