61 31 117 Removing and installing/replacing power window switch (driver's side)

Necessary preliminary tasks:

Release catches (1) on both sides.

Remove switch (2) in direction of arrow from mounting.

Installation note:

Retaining tabs and latch mechanisms (1) must not be damaged or missing.

Make sure switch (3) is correctly seated.

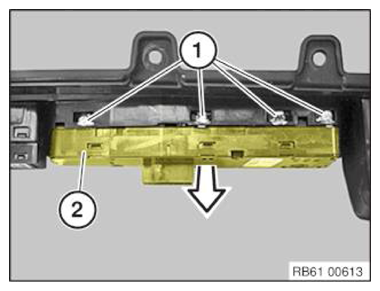

Fig 1: Removing Power Window Switch (Driver Side)
G11110159Courtesy of BMW OF NORTH AMERICA, INC.
