11 13... Removing and installing/replacing oil sump acoustic cover (PHEV)
WARNING:
High-voltage system - danger to life
- Observe SAFETY INFORMATION for working with electric vehicles.
Necessary preliminary tasks:
- Remove REINFORCEMENT PLATE .
Removal:

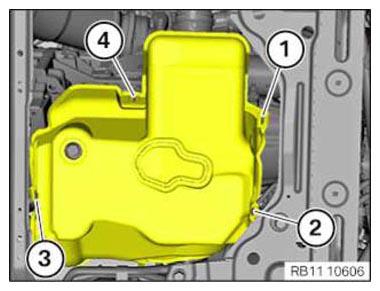

Release clamps 1-4.
Carefully guide the acoustic cover out.
Installation:
Carefully guide the acoustic cover in.
Fasten clamps 1-4.
