31 10 010 Remove and install/replace reinforcement plate (PHEV)

WARNING: High-voltage system - risk of serious injury or death.

IMPORTANT: Driving without reinforcement plate is not permitted!

Necessary preliminary tasks:

Release screws (1).

Tightening torque 31 10 2AZ .

Installation note:

Replace screws (2).

Fig 1: Identifying Reinforcement Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release vacuum lines (2) from holder (1).

Remove reinforcement plate (3).

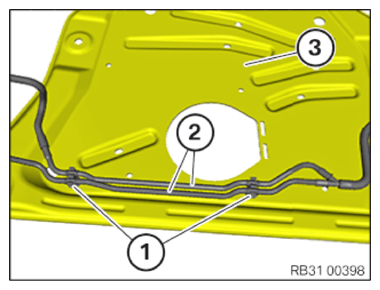

Fig 2: Identifying Vacuum Lines, Holder And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.
