Removing and installing/replacing Central Information Display (CID) (X5 M)

Attention!

Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

• Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT .

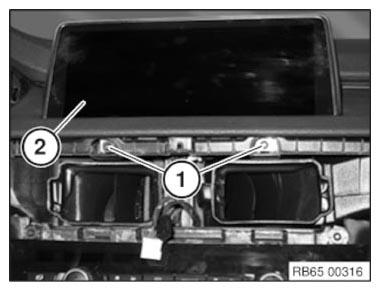

Release screws (1).

Tightening torque 65 50 1AZ .

Remove CID (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection and disconnect.

Remove CID (1).

Courtesy of BMW OF NORTH AMERICA, INC.
