Removing and installing (replacing) right decorative strip on dashboard (X5 M)

Special tools required:

• 00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Remove INSTRUMENT CLUSTER TRIM .

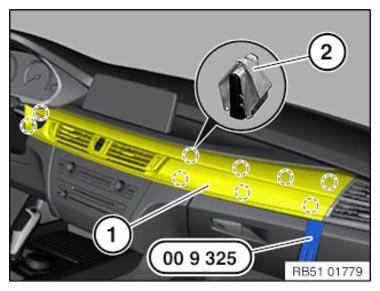

  Release decorative strip (1) from clips (2) using special tool 00 9 325, starting from the outside.

  Lift off decorative strip (1) slightly and disconnect underlying plug connection.

  Remove decorative strip (1).

Installation note:

Replace faulty clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount FRESH AIR GRILLE .

Swap over START/STOP SWITCH .
