Removing and refitting/replacing front positive battery lead power distribution box (passenger compartment) (X5 M)
Necessary preliminary tasks:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Remove SIDE TRIM PANEL from footwell on right A-pillar.

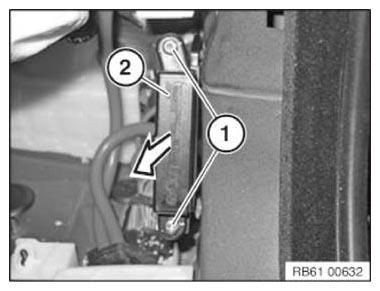

Release screws (1).
Pull battery positive lead power distribution box (2) out of bracket in direction of arrow.
