Removing and installing or replacing left fresh air grille (X5 M)
Necessary preliminary tasks:
- Remove DECORATIVE STRIP FROM FRESH-AIR GRILLE .
- Remove DECORATIVE STRIP ON DASHBOARD ON LEFT .

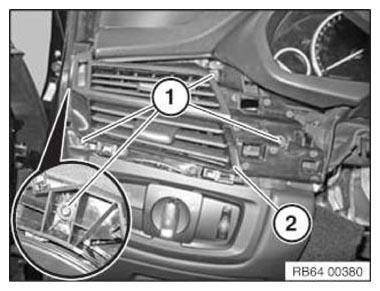

Release screw (1).
Pull air vent grille (2) out of instrument panel.
