Removing and installing/replacing decorative strip on left fresh air grille (X5 M)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

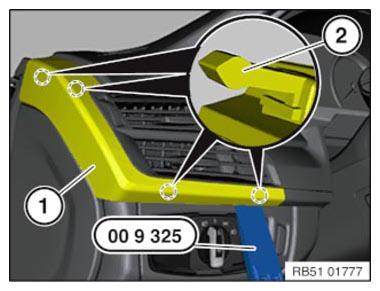

Loosen decorative strip (1) using special tool 00 9 325 from latch mechanisms (2) and remove.
Installation note:
Catches (2) must not be damaged or missing.
Installation note:

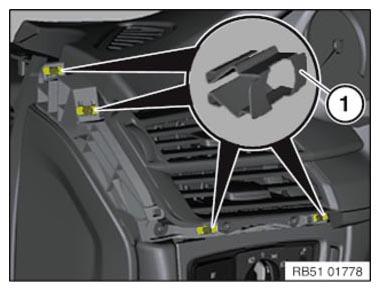

Replace faulty clamps (1).
Ensure clamps (1) are seated correctly.
