Removing and installing/replacing oil pump (S63T2) (X5 M)

Special tools required:

00 9 120
11 7 200
11 8 920
11 9 280
51 0 342
2 445 323
2 413 036
2 213 485

CAUTION: All adjustment operations on the chain drive must be observed. A timing chain which is tensioned too tautly can cause interference noise in the chain drive. A timing chain that is too slack can cause the timing chain to jump. Risk of damage in oil pump drive.

Necessary preliminary work

Drain ENGINE OIL .
Remove LOWER OIL SUMP SECTION. .

Unscrew nuts (2).

Tightening torque: 11 41 1AZ .

Remove intake pipe (1).

Installation note:

Replace O-ring.

Courtesy of BMW OF NORTH AMERICA, INC.

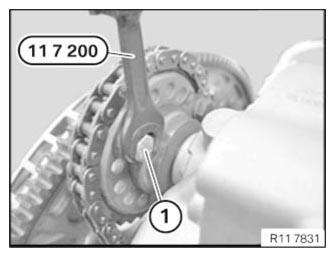

Release all nuts (1) using special tool 11 7 200.

Tightening torque 11 41 5AZ .

Remove oil pump drive gear.

NOTE: Graphic shows engine removed

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Release screws, remove oil pump (1) with aid of a second person.

Installation note:

Replace screws.

Tightening torque 11 41 2AZ .

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off engine oil line (1) upwards in direction of arrow.

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings (1).

Lightly oil sealing ring 1 (1).

Coat engine oil pipe (2) with suitable lubricant.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace O-ring (1) for oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

Fit engine oil pipe (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When the oil pump is replaced, the oil deflector (2) must be remounted.

Release screws (1).

Tightening torque: 11 41 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 8 920 to special tool 11 9 280.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand thread on oil pump screw connection.
Do not grip oil pump drive with a pair of pliers risk of damage .

Courtesy of BMW OF NORTH AMERICA, INC.

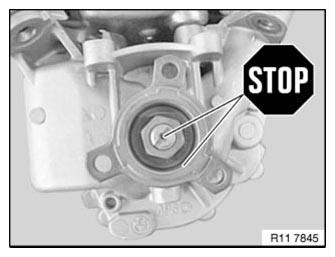

CAUTION: Nut (1) has left-hand thread.

Position the special tool 11 8 920 on the sprocket.

Slacken nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check mounting flats on pump shaft (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Nut (1) has left-hand thread.

Grip pump with assistance of a second person.

Mount nut (1) with the special tool 00 9 120.

Tightening torque: 11 41 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Join and secure nuts (1).

Tightening torque 11 41 2AZ .

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

Install oil pump drive gear.

Secure all nuts (1) with special tool 11 7 200.

Tightening torque 11 41 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust oil pump timing chain .

Pretension oil pump adjusting sleeve (1) with a hexagon socket wrench.

Adjustment value 10 mm +2 .

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

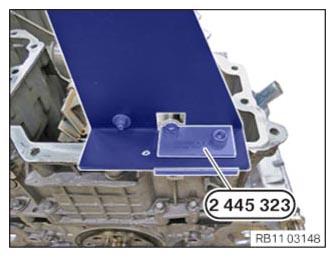

Position special tool 2 445 323 on upper oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

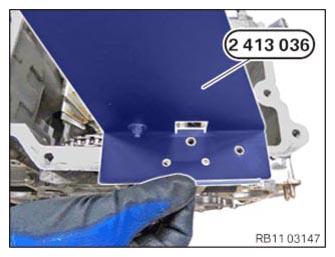

Position special tool 2 413 036 on upper oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

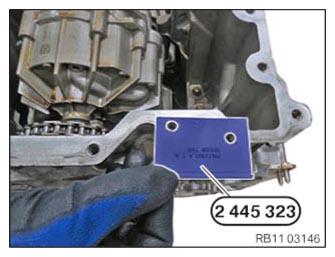

Screw special tool assembly 2 445 323 to upper oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the secondary indicator (1) of the special tool 2 213 485 on the oil pump chain.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not use force preload timing chain.

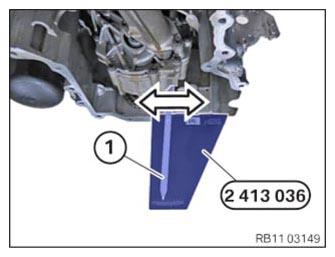

Push drag pointer (1) to the right, note down the value.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not use force preload timing chain.

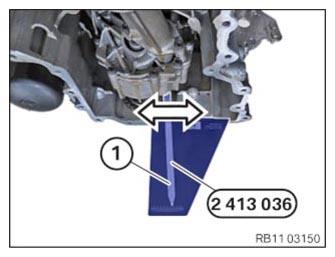

Push drag pointer (1) to the left until value has been determined.

Adjustment value 10 mm +2 .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust oil pump timing chain .

Pretension oil pump adjusting sleeve (1) with a hexagon socket wrench.

Adjustment value 10 mm +2 .

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

Join and secure screw (2).

Tightening torque 11 41 2AZ .

NOTE: Graphic without top oil sump

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
