Removing and installing/replacing inlet and exhaust adjustment units on left side (S63T2) (X5 M)

Special tools required:

2 249 162
2 249 144
2 249 159
2 249 140
00 9 250
00 9 460
11 9 190
11 8 570
11 4 350
00 9 120
2 249 117

(cylinder bank 5 to 8)

Necessary preliminary tasks:

Read fault memory and make a documentary record .
Remove LEFT CYLINDER HEAD COVER .
Remove LEFT GEAR CASE COVER .
Check TIMING .

IMPORTANT: If special tool can not be fitted, hexagon head of relevant camshafts must be counter-supported when releasing central bolt.

Release central bolts (1 and 2) of intake adjuster and exhaust camshaft adjuster.

Installation note:

Replace central bolts after releasing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Release special tool 2 249 162 at knurled screws and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove upper tensioning rail (2).

NOTE: For better graphic without special tools. Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt (2) of inlet adjustment unit.

Installation note:

Replace central bolts after releasing.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off inlet adjustment unit (1) in direction of arrow from intake camshaft.

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out inlet adjustment unit (2) from timing chain (1).

Lift out inlet adjustment unit (2).

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off exhaust adjustment unit (1) in direction of arrow from exhaust camshaft.

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out exhaust adjustment unit (2) from timing chain (1).

Lift out exhaust adjustment unit (2).

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

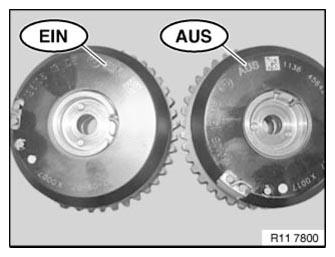

IMPORTANT: Danger of mix-up: Intake and exhaust camshaft adjusters are different.

Mixing up the intake and exhaust camshaft adjuster will cause damage to the engine.

Intake adjuster is marked with {EIN} .
Exhaust camshaft adjuster is marked with {AUS} .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat contact surface of new central bolt (1) with 4.4 copper paste.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of adjustment units in relation to timing chain can be freely selected.

Feed adjuster into timing chain and position on camshafts.

Insert central bolts (1 and 2) on adjustment units without gaps.

Release central bolts (1 and 2) by 45° .

Courtesy of BMW OF NORTH AMERICA, INC.

Fit slide rail (2) and tighten with screws (1).

Tightening torque: 11 31 4AZ .

Graphic N63.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 144 on intake camshaft.

Secure special tool 2 249 144 with bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 2 249 159 on exhaust camshaft.

Screw special tool 2 249 159 to special tool 2 249 140.

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 2 249 162.

Pretension timing chain with special tool 2 249 162.

Pretension timing chain with special tool 00 9 250 or 00 9 460 to 0.6 Nm .

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolts (1 and 2) by 45° .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

IMPORTANT: Crank engine back at central bolt through 45°.

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect special tools 11 9 190 from gear case cover.

Rotate crankshaft in direction of engine rotation at central bolt until special tool 11 8 570 comes into contact in front of special tool 11 9 190.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 11 4 350.

Joining torque 5 Nm .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with special tool 11 4 350.

Joining torque 5 Nm .

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 190.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn engine at central bolt further until special tool 11 9 190 can be positioned in gear case cover.

The engine is now 150° before TDC firing position cylinder 1.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten central bolts beginning with the exhaust camshaft.

Insert central bolt (1) of exhaust camshaft with torque.

Tightening torque of 30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of intake camshaft with torque.

Tightening torque of 30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120.

TORSION ANGLE ADJUSTMENT120° .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) of exhaust camshaft with special tool 00 9 120.

TORSION ANGLE ADJUSTMENT120° .

Remove special tool 2 249 117.

Check TIMING again.

Remove all special tools.

Courtesy of BMW OF NORTH AMERICA, INC.
