Removing and installing/replacing head-up display (X5 M)

Attention!

Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Attention!

Comply with notes on HANDLING OPTICAL FIBRES .

Risk of damage!

Do not scratch the Head-Up Displays.

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL TRIM .

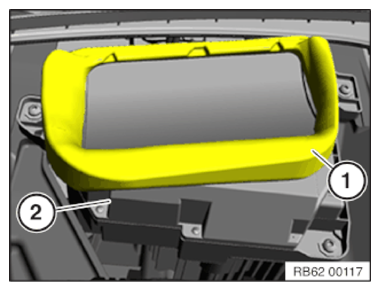

Remove seal (1) from head-up display (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 62 30 1AZ .

Carefully feed out head-up display (2) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

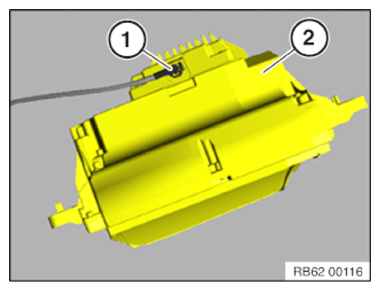

Unfasten electrical connector (1) on head-up display (2) and disconnect.

Remove head-up display (2).

Installation note:

Clean the Head-Up Displays.

Adjust HEAD-UP DISPLAY .

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
