Removing and installing or replacing trim panel on left or right door post (top) (X5 M)
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

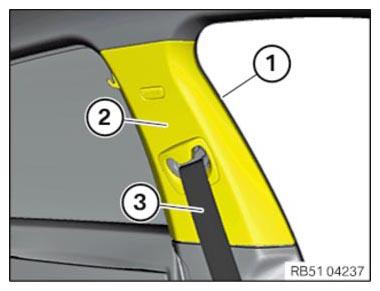

Unclip trim panel (2) in lower area.
Pull off trim panel (2) towards bottom.
If necessary, unlock plug connection and disconnect.
Installation note:
Make sure trim panel (2) is correctly seated in edge protection (1).
Complete removal only:
Loosen the END FITTING at the front seat.
Feed out seat belt strap (3) from trim panel (2).
Installation note:
Guides (1) and clips (2) on trim panel (3) must not be damaged.
