Removing and installing/replacing front left or right seat belt (X5 M)
Necessary preliminary work:
- Remove TRIM PANELS FOR DOOR POST .
Version with end fitting pretensioner only:
Necessary preliminary work:
- Remove OUTER COVER .
Release screw (1).
Tightening torque: 72 11 7AZ .
Remove the lock washer.
Pull seat belt strap (2) out of end fitting tensioner.
Move front seat upwards.
Release screw (1) on front seat.
Installation note:
Replace screw.
Tightening torque: 72 11 2AZ .
Feed out belt end fitting (2).

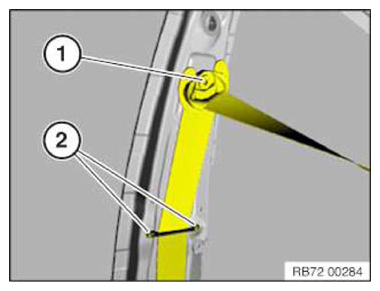

Unfasten screws (2).
Tightening torque: 72 11 4AZ .
Remove slide bar.
Release screw (1).
Installation note:
Replace screw (1).
Remove seat belt guide loop.
Tightening torque: 72 11 5AZ .

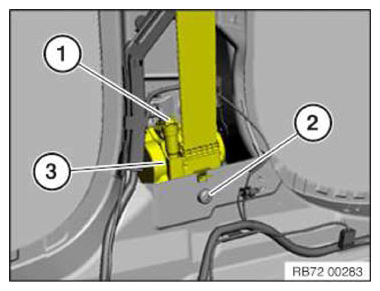

Basic seat belt:
Unfasten plug connection (1) and disconnect.
Release screw (2).
Installation note:
Replace screw (2).
Tightening torque: 72 11 1AZ .
Unlock inertia reel unit (3) and remove from B-pillar.
Installation note:
Automatic reel is coded against incorrect installation.

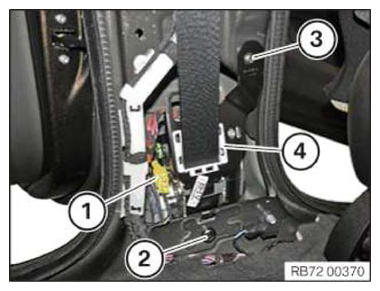

REMA* seat belt/SA5AL Active Protection:
*REMA= reversible electromotive inertia reel
Unfasten plug connection (1) and disconnect.
Release screws (2) and (3).
Installation note:
Replace screws (2) and (3).
Tightening torque: 72 11 1AZ .
Remove inertia reel (4) from B-pillar cover.
Disconnect remaining plug connections and remove inertia reel (4).
Installation note:
Automatic reel is coded against incorrect installation.
Installation note:
Free spaces of (A) and (B) from the seat belt strap to the guide funnel must be of the same size.
During replacement with version REMA seat belt/SA5AL Active Protection:
Carry out PROGRAMMING/ENCODING .
Installation note:
Carry out FUNCTION CHECK .
