Removing and installing adapter plate of backrest lock (X5 M)

Necessary preliminary taste:

• Remove LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL and RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Release screw.

Tightening torque 52 26 6AZ .

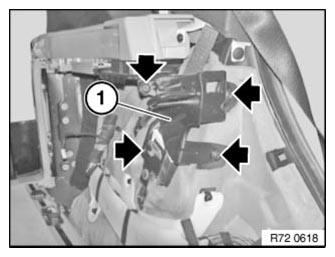

Remove adapter plate for backrest lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with 3rd seat row:

Release screws.

Tightening torque 52 26 6AZ .

Remove adapter plate for backrest lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.
