Adjusting tailgate catch for tailgate upper section (X5 M)
Prerequisite:
- TAILGATE UPPER SECTION correctly adjusted to fit.
- TAILGATE CATCH for tailgate lower section correctly adjusted.

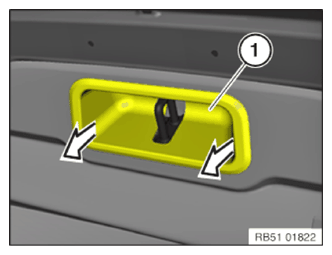

Unclip cover (1).
Slacken screws (1) until striker (2) can still just be moved and centers itself.
Close rear lid.
Adjust tailgate to BODY DIMENSIONS .
Tighten down screws (1).
Tightening torque 51 24 4AZ .
Check adjustment, repeat procedure if necessary.
NOTE:
When the tailgate is closed, the striker (2) must not jar or rub in the tailgate lock. Look out for scratch marks.
Version with reversing camera:
After adjusting, check reversing camera and if necessary RECALIBRATE .
