Removing and installing/replacing support for front bumper panel (X5 M)

Necessary preliminary work:

CAUTION:

Pedestrian protection sensor must be checked and/or replaced after airbag deployment.

Release expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) on left and right and disconnect.

Remove impact absorber (2).

Installation note:

Check impact absorber (2). A damaged impact absorber (2) must not be reused.

First attach impact absorber (2) at the bottom and then press on at the top.

Courtesy of BMW OF NORTH AMERICA, INC.

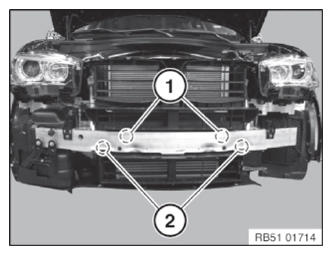

Unscrew bolts (1) and (2) from the back.

NOTE: Depending on engine variant, only bolts (1) may be fitted.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1) on support.

Tightening torque 51 11 12AZ .

Unfasten screws (2).

Tightening torque 51 11 4AZ .

Diesel vehicles only:

Release screws (3) and nuts (4).

Replacement:

Unscrew bolt (5) and swap over bracket.

NOTE: Carry out work on the left side in the same way as for the right side illustrated here.

Remove support.
