Removing and installing/replacing radiator air duct (X5 M)

Necessary preliminary taste:

• Remove SUPPORT FOR BUMPER PANEL AT FRONT .

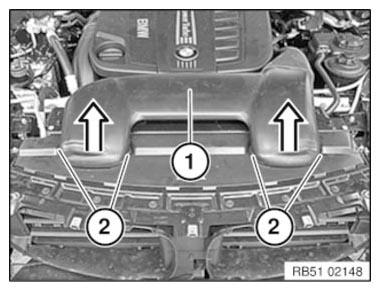

Release latch mechanism (2) and remove intake port (1) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cover (1) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

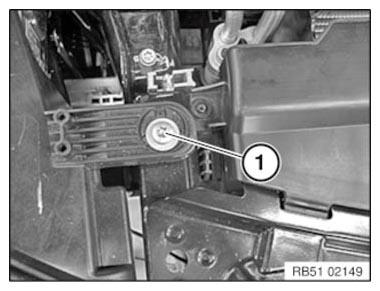

Release screws (1) on left and right.

Tightening torque 63 12 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

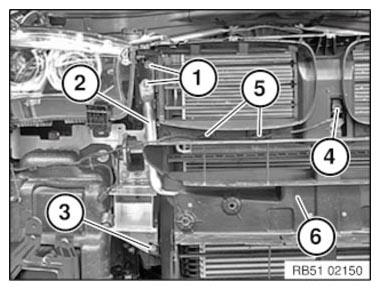

Release screws (1) and (3) on left and right.

Remove left and right strut (2).

Unlock plug connection (4) and disconnect.

Unfasten cable strap (5).

Remove air duct (6) toward the front.

Courtesy of BMW OF NORTH AMERICA, INC.
