51 43 261 Removing and installing/replacing trim on D-pillar at bottom left or right

Necessary preliminary work:

Removal:

Release screws (1).

Unclip trim panel (2) from clips (3) and remove.

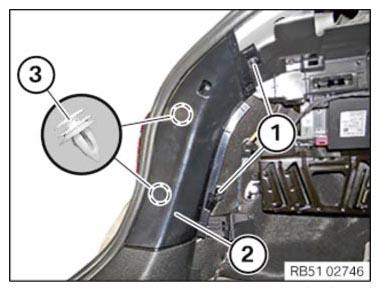

Fig 1: Installing Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trim panel (2) and attach clips (3).

Tighten down the screws (1).

Fig 2: Installing Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
