51 49 015 Removing and installing/replacing cover for rear window frame at top

Removal:

Unclip cover (1) in marked areas and remove downwards.

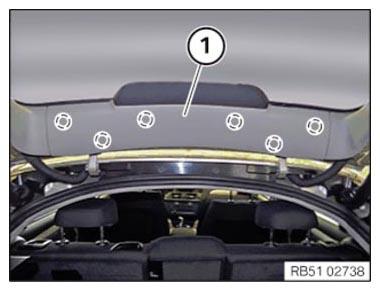

Fig 1: Identifying Rear Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Clips (1) and guide must not be damaged or missing.

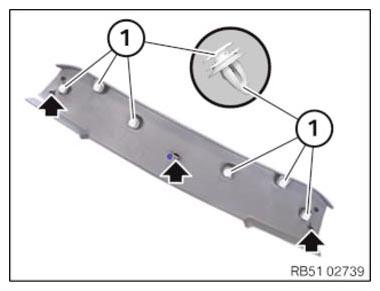

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1) and clip in marked areas.

Fig 3: Identifying Rear Window Frame Cover

Courtesy of BMW OF NORTH AMERICA, INC.
