51 46 050 Removing and installing/replacing top cover on tail panel

Special tools required:

Necessary preliminary work:

Removal:

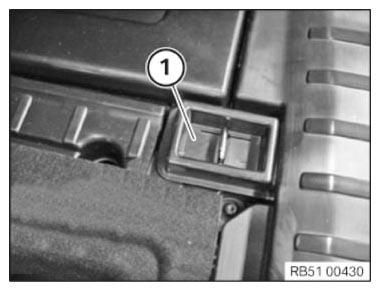

Lift out cover (1) with special tool 00 9 325 .

Fig 1: Identifying Top Cover On Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

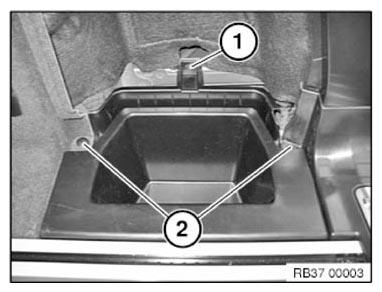

Undo screw (1), release expanding rivets (2) and remove storage compartment.

Fig 2: Identifying Storage Compartment Screw And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

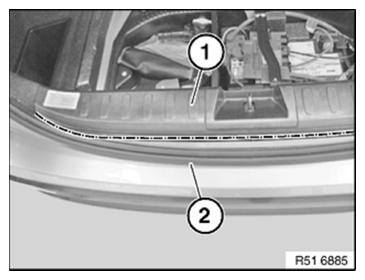

Pull off edge protection for tailgate (2) in marked area of trim (1).

Fig 3: Identifying Tailgate Edge Protection In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

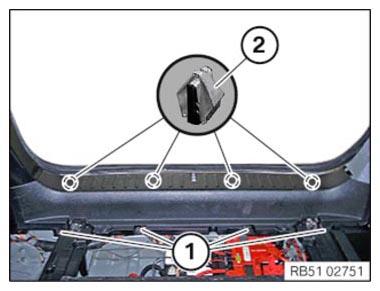

Release screws (1).

Lift trim (1) on left side out of retaining clips (2).

Feed trim (1) out of trim on D-pillar at bottom right.

Fig 4: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Replace faulty retaining clips.

Feed trim (1) into trim on D-pillar at bottom right.

Press trim (1) on left side down into retaining clips (2).

Tighten down the screws (1).

Fig 5: Identifying Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Fit edge protection for tailgate (2) in marked area of trim (1).

NOTE: Make sure edge protection is fitted correctly on bumper panel and trim (1).

Fig 6: Identifying Tailgate Edge Protection In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Install storage compartment.

Tighten screw (1) and expanding rivets (2).

Fig 7: Identifying Storage Compartment Screw And Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Install the cover (1).

Fig 8: Identifying Top Cover On Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.
