51 47 156 Removing and installing/replacing left or right capping in luggage compartment

Necessary preliminary work:

• Remove TRIM FOR ROOF PILLAR AT REAR
• Remove luggage compartment wheel arch panel. See REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL  or REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Removal:

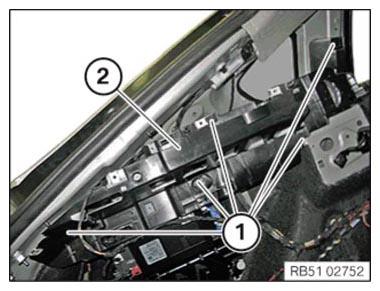

Release screws (1).

Remove shoulder (2) to side and detach cables.

Installation:

Attach cables and install shoulder (2).

Tighten down the screws (1).

Replacement:

Remount speaker.
