63 25 000 Removing and installing/replacing additional brake light
Necessary preliminary work:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Removal:

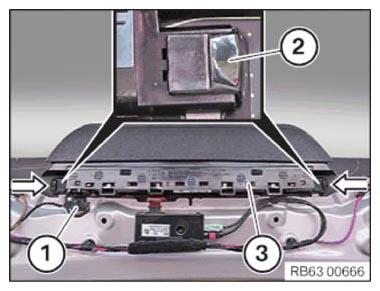

Unlock and disconnect the connector (1).
Unlock both slides (2) in direction of arrow and remove additional brake light (3).
Installation:
Insert additional brake light (3) and lock with both slides (2).
Connect the connector (1).
Installation note:
Make sure slides (2) are locked correctly.
Required follow-up work:
