31 60 000 Removing and installing/replacing left or right output shaft

Special tools required:

31 5 110

NOTE: If the wishbone is detached from the front axle support, it will be necessary to carry out the wheel alignment procedure.

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove front UNDERBODY PROTECTION .
Remove ANTI-ROLL BAR LINK FROM ANTI-ROLL BAR .

IMPORTANT:

The radial shaft seal for the output shaft should be replaced every time the output shaft is removed and installed.

IMPORTANT: Circlip (1) in the bearing support/front differential must be replaced when fitting the output shaft!

Fig 1: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove visual protection cap (1).

Fig 2: Removing Visual Protection Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolt (1), press brake pedal to floor for this purpose.

Tightening torque 31 60 2AZ .

Fig 3: Identifying Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Renew collar bolt (1) and compression spring (2).
Pay attention to installation position of compression spring (2).
Keep collar bolt and spur toothing of bearing/propeller shaft clean and free of grease
Follow installation note of the spur gearing.

Fig 4: Identifying Compression Spring And Collar Bolt
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note on installation must be observed without fail!

Installation note:

Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
Tighten collar bolt and compression spring by hand.
Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
Once a form-fit has been ensured, tighten to final torque.

Tightening torque 31 60 2AZ .

Fig 5: Checking Spur Gearing Of Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Detach TIE ROD END FROM SWIVEL BEARING .

Release WISHBONE ON FRONT AXLE CARRIER .

Turn swivel bearing to one side.

Remove output shaft from swivel bearing/wheel bearing.

Front differential:

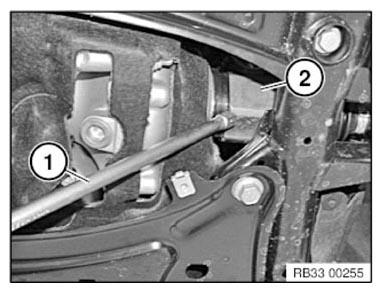

Knock out output shaft (2) from the front axle differential with an aluminium drift (1).

Installation note:

Renew RADIAL SHAFT SEAL IN FRONT AXLE DIFFERENTIAL .

Coat sealing lips with front differential oil.

Replace circlip and slide in output shaft, overcoming resistance of circlip. Output shaft must snap audibly into place.

IMPORTANT: High installation forces indicate that the gearing on the output shaft/rear axle final drive side gear are damaged/deformed!
Check gearing and replace components if damaged.

Fig 6: Removing Output Shaft With Aluminium Drift

Courtesy of BMW OF NORTH AMERICA, INC.

bearing support:

Press output shaft with special tool 31 5 110 out of bearing support and remove.

Installation note:

Replace SHAFT SEAL IN BEARING SUPPORT and coat sealing lips with front differential oil.

Replace circlip and slide in output shaft, overcoming resistance of circlip. Output shaft must snap audibly into place.

Fig 7: Pressing Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: High installation forces indicate that the gearing on the output shaft/rear axle final drive side gear are damaged/deformed!
Check gearing and replace components if damaged.

After installation:

Check OIL LEVEL IN FRONT AXLE DIFFERENTIAL , correct if necessary.
Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
