65 50 057 Removing and installing/replacing Central Information Display (CID)

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

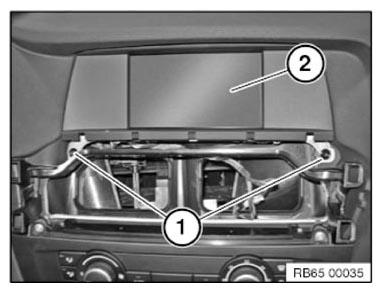

Release screws (1).

Tightening torque 65 50 1AZ .

Remove CID (2).

Fig 1: Identifying CID Screws

Courtesy of BMW OF NORTH AMERICA, INC.

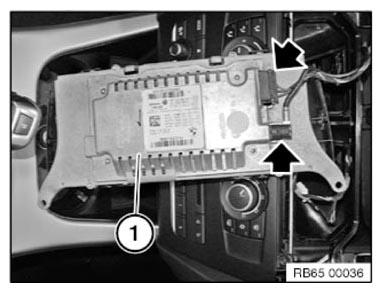

Unlock plug connections and disconnect.

Remove CID (1).

Fig 2: Locating CID Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
