51 45 385 Removing and installing/replacing middle decorative strip on instrument panel

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

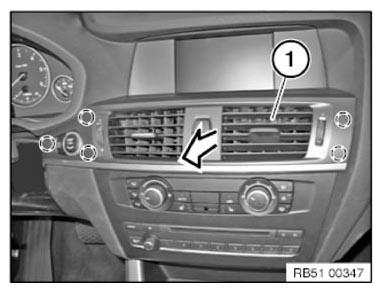

Unclip trim strip (1) at marked points.

If necessary, replace defective clips.

Fig 1: Removing Instrument Panel Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

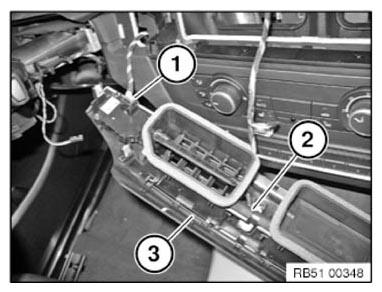

Unlock plug connections (1) and (2) and disconnect.

Remove decorative strip (3).

Fig 2: Identifying Decorative Strip Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
