51 43 259 Removing and installing/replacing trim panel for rear roof pillar (D-pillar), left or right
Necessary preliminary tasks:
- Remove TRIM FOR ROOF PILLAR AT REAR
- Remove luggage compartment-wheel arch trim cover . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL

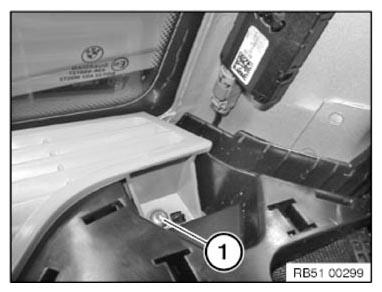

Release screw (1).

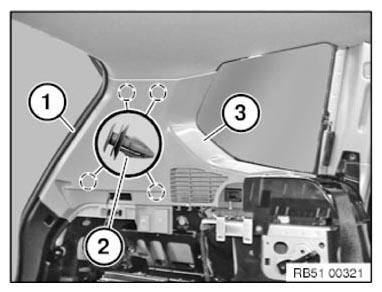

Release edge protection (1).
Detach trim panel (3) from clips (2).
Release plug connection of switch for trailer tow hitch/luggage compartment lighting (right) and disconnect.
IMPORTANT:
Risk of damage!
Carefully remove trim panel (3) to avoid damaging the headlining.
Installation note:

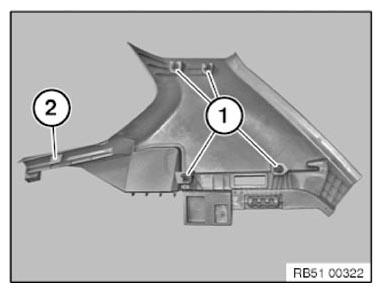

Replace faulty clamps (1).
Guide (2) must not be missing or damaged.
Replacement (depending on version):
Convert SWITCH FOR TRAILER TOW HITCH .
Reinstall luggage compartment lighting.
