51 47 151 Removing and installing/replacing left luggage compartment wheel arch panel
Necessary preliminary work:
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL
- Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL
- Remove ARMREST SIDE SECTION

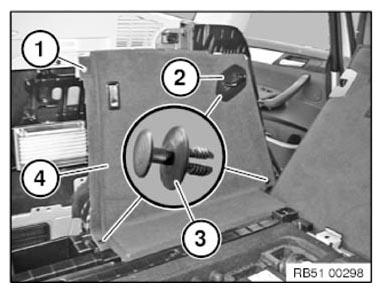

Release screw (1).
Unclip cover (2) and release expanding rivet (3) below.
Release remaining expanding rivets (3).
Feed out luggage compartment wheel arch panel (2).
Installation note:
Replace faulty expanding rivets (3).
