51 49 008 Removing and installing (replacing) trim for rear lid

Necessary preliminary work:

• Remove TRIM PANEL FOR REAR WINDOW FRAME  on left/right

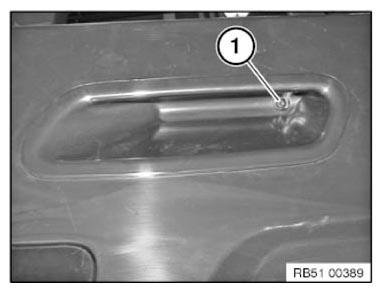

Release screw (1) on left/right in handle recess.

Fig 1: Identifying Handle Recess Screw

Courtesy of BMW OF NORTH AMERICA, INC.

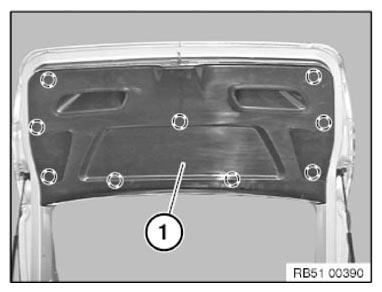

Unclip trim panel (1) in marked areas are remove by pulling downward.

Fig 2: Identifying Trim Panel Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

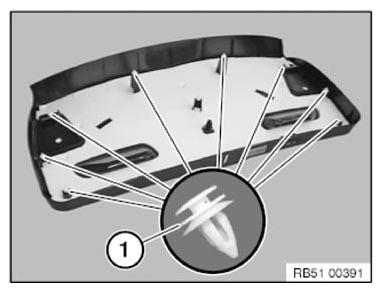

Replace faulty clips (1).

Fig 3: Identifying Rear Lid Clips

Courtesy of BMW OF NORTH AMERICA, INC.
