51 49 003 Removing and installing/replacing trim for rear window frame on left or right

Necessary preliminary work:

• Remove TRIM FOR REAR WINDOW FRAME AT TOP

Unclip trim cover (1) in marked areas and remove to the side.

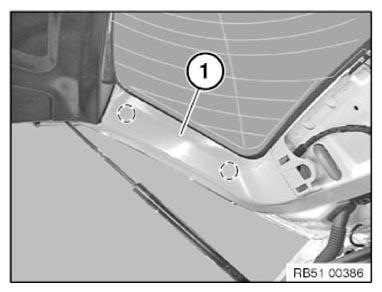

Fig 1: Identifying Trim Cover Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1).

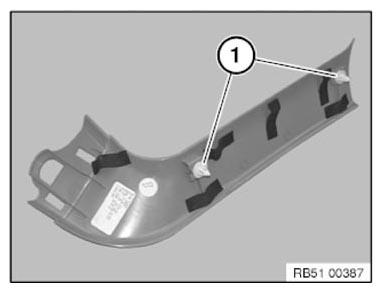

Fig 2: Identifying Window Frame Clips

Courtesy of BMW OF NORTH AMERICA, INC.
