51 49 015 Removing and installing/replacing cover for rear window frame at top

Unclip cover (1) in marked area and remove downwards.

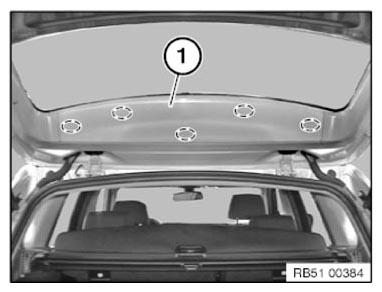

Fig 1: Identifying Window Frame Cover Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and guide (2) must not be damaged or missing.

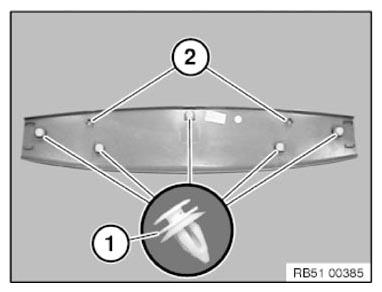

Fig 2: Identifying Window Frame Clips And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
